Router-Saw Depaneling: Vacuum Board Transfer Video
Follow the internal board-handling sequence in the landscape video embedded on JELIO’s router-and-saw product page. The footage focuses on the moving transfer assembly, its suction lines and the supported positions used during the panel handoff. For an automation engineer, this is a useful starting point for discussing pickup surfaces, release positions and the relationship between transfer and separation. Explore the related depaneling platforms below, then compare their published tooling and handling information. This page keeps the source product-family data together with a buyer workflow for defining the incoming panel, fixture interface and outgoing board arrangement before requesting a configuration review.
Video playback is temporarily unavailable. Open the original video or contact JELIO.
DIRECT ANSWER
What should you define for board transfer around a depaneling station?
Define the panel pickup surface, support at the receiving position, release arrangement and the next handling step after separation. The JELIO product-page clip shows internal transfer hardware and a board handoff sequence. Use it to explain your handling requirements, then compare the related platform’s published tooling, panel envelope and loading-and-unloading information before discussing an integrated configuration.
Watch the handoff between supported positions

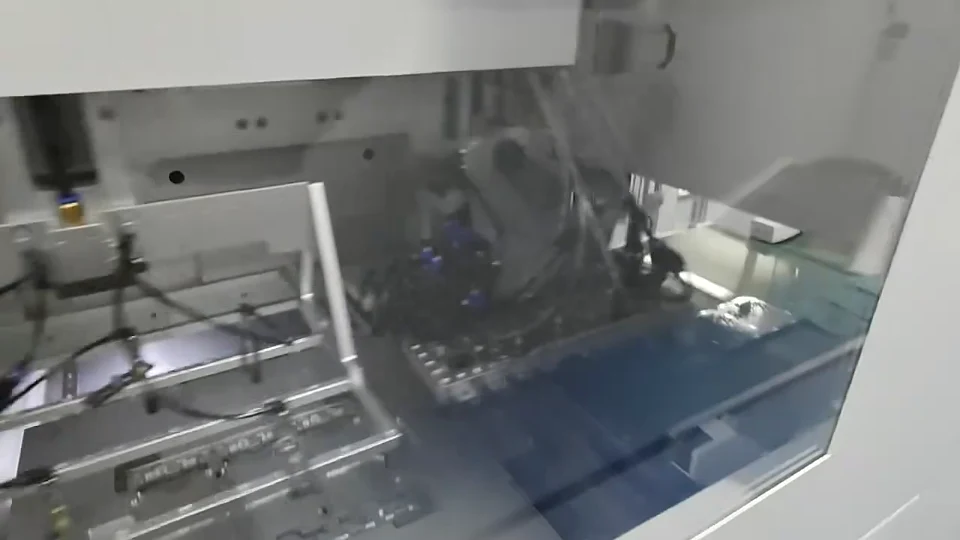

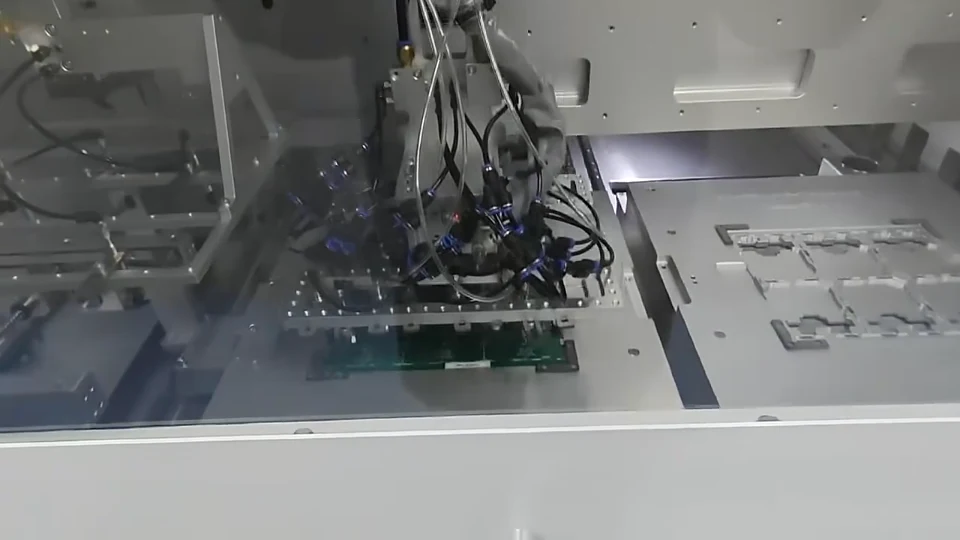

The camera looks through the machine enclosure at the moving handling assembly. Suction lines are visible above the work area, and later frames show the assembly moving between supported panel positions. The clip is especially useful for discussing where a panel is held and where the next support takes over.
Bring the pickup surface and the final-board arrangement into the same discussion as the cut route. A support designed for an incoming panel may need a different release or receiving arrangement after separation. Compare the inline PCB router, whose product table lists vacuum suction cup handling and transfer, when reviewing a production-line handoff.
Three moments from this video
CURRENT JELIO CATALOG
Related Products
Explore the following equipment pages for model-specific configuration details.
Source product page
JLO-CXJ3235/JLO-CXJ4550
Source product family for the embedded board-transfer video.
View product & specifications
Related product
JLO-CXJ3235
Compare the inline integrated platform’s tooling, envelope and interfaces.
View product & specifications
Related product
JLO-C3532Z
Review the JLO-C3532Z router’s published vacuum handling and transfer arrangement.
View product & specificationsRELATED PRODUCT SPECIFICATIONS
Technical Specifications
Source: JLO-C3532Z. These are the published specifications for this related catalog product.
| Parameter | Published value |
|---|---|
| Model | JLO-C3532Z |
| Max. PCB Depaneling Size | 350mm(X)*320mm(Y) (Single Station) |
| Cuttable PCBA Thickness | 0.5~4mm |
| Loading & Unloading Method | Vacuum suction cup handling & transfer |
| Milling Cutter Replacement Method | Automatic tool change |
| MES Connection | MES CSV text format (standard), barcode scanner (optional) |
| Spindle Tool Range | φ0.5~3mm |
| Spindle Speed | MAX.60000rpm |
Source family and inline handling option: configuration reference
| Decision point | JLO-CXJ3235/JLO-CXJ4550 | JLO-CXJ3235 |
|---|---|---|
| Model family | JLO-CXJ3235/JLO-CXJ4550 | JLO-CXJ3235 |
| Component-height entry | Upper:10mm Lower:45mm | Milling/Saw: Upper:15mm/10mm Lower:45mm |
| Tool-change arrangement | Manual tool change / Automatic tool change (optional) | Automatic tool change |
| MES connection | MES: CSV text grabbing (standard); barcode scanner (optional) | MES CSV text format (standard), barcode scanner (optional) |
RECOMMENDED BUYER WORKFLOW
Define a depaneling handoff for configuration review
- 01
Describe the incoming panel
Provide panel geometry, pickup surfaces and incoming orientation.
- 02
Map supported positions
Identify fixture contact points and transfer clearance.
- 03
Define the outgoing boards
Show release positions, receiving supports and the next process.
- 04
Review the combined trial
Include handling, separation and transfer in the requested sample review.
Prepare your application review
For a line-integration inquiry, provide a simple layout showing the station before depaneling and the station after it. Mark the panel orientation, receiving position and information that must travel with the board. This turns a general transfer discussion into a configuration brief that the engineering team can assess.
The inline JLO-C3532Z router’s vacuum-handling, tool-change and MES entries provide another configuration to compare alongside the integrated platforms. Review customization and ODM services for the interface discussion and the inline versus offline guide for the broader production decision.
Frequently asked questions
What part of the process is the focus of this video?
The focus is the internal handling assembly and movement between supported panel positions in the router-saw product-page video.
Which product page contains the original embedded video?
The Router & Saw Integrated PCB Depaneling Machine page for JLO-CXJ3235/JLO-CXJ4550 contains the original embedded clip.
Which related platform lists vacuum handling in its table?
The inline JLO-C3532Z PCB router product table lists Vacuum suction cup handling & transfer under Loading & Unloading Method. Its specifications are identified separately on this page.
What information helps define the receiving side of the transfer?
Share outgoing board positions, support surfaces, orientation and the next operation. Include the upstream and downstream layout with the panel drawing.
How do I request an integrated handling review?
Contact JELIO with the panel drawing, pickup and release requirements, line layout and interface needs. Ask for the machine configuration and handling scope to be included in the technical discussion.
