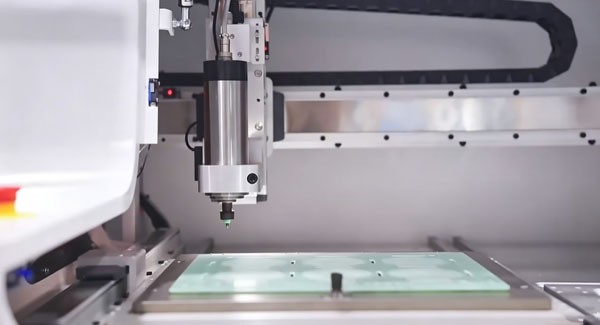

: What factors determine the appropriate spindle speed and power?

Higher spindle speeds suit thinner boards and finer cutters, producing cleaner edges with less burr formation. Lower speeds with higher torque handle thicker materials and larger t...28-06-2026
[ Read More ]; 19

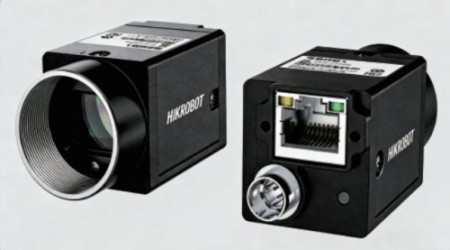

: How does the vision system improve cutting accuracy?

The CCD camera scans registration marks on the PCB, compares actual position against programmed coordinates, and automatically offsets the cutting path. This compensates for board ...28-06-2026
[ Read More ]; 0

: What board materials can JELIO equipment process?

Standard router and guillotine machines handle FR-4, FR-2, fiberglass, and aluminum substrates within specified thickness ranges. Laser depaneling extends capability to flexible ci...28-06-2026
[ Read More ]; 1

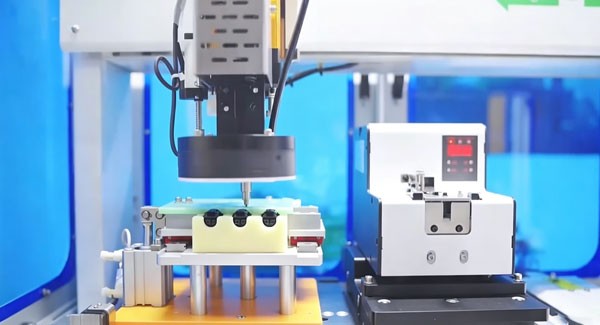

: When should I consider a router-saw integrated machine?

If your production mixes contour boards requiring milling and straight-line boards suitable for saw cutting, an integrated system eliminates the need for two separate machines. It ...28-06-2026
[ Read More ]; 0

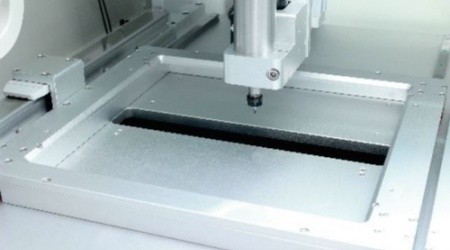

: What is the difference between manual and automatic tool change?

Manual tool change requires an operator to replace worn cutters when quality degradation becomes visible. This approach suits low-volume production or operations where tool wear oc...28-06-2026
[ Read More ]; 2
