Click to enlargeWhy Global Manufacturers Choose JELIO PCBA Depaneling Machines
Your Premier Partner for High-Precision PCB Separation Solutions
ISO 9001 Certified | 59 Patents | Direct Factory Pricing
Maximize Your Profit Margins
Cut out middlemen. Direct manufacturer pricing from our 1,600 sqm in-house factory gives you a significant cost advantage over local brands.
High-Precision Performance
Stable ±0.01mm repeatability with 1.3MP CCD vision positioning. ISO 9001 certified. Serving clients in automotive, semiconductor, and new energy industries.
Flexible OEM/ODM Customization
Custom configurations, inline integration, tray loaders, and specialized fixturing for unique PCB layouts.
Durable & Easy Maintenance
Modular design, user-replaceable spindle units, and 24/7 remote diagnostics. Built on 15+ years of expertise since 2010.
Sourcing PCBA Depaneling Machines from China Made as Easy as Buying Local
With 15+ years of export mastery, we've bridged the gap. Whether you're a first-time importer or a pro, we handle every detail to ensure a risk-free, "doorstep" experience.
How fast can you deliver?
Standard: 3-7 days | Rush: Priority within 48h | Ready stock for popular models.
Are your products compliant for my market?
Fully certified: ISO 9001, CE. All documentation provided for easy customs clearance. Optional DDP delivery available.
What if products are damaged during shipping?
Triple protection: Industrial packaging + optional wooden cases + full insurance. Immediate replacement upon confirmation.
Is payment secure?
- Alibaba Trade Assurance (payment released after you confirm delivery)
- LC (Letter of Credit) for large orders
- PayPal for samples and small orders
Do your machines meet industry standards?
Absolutely. Our machines strictly adhere to IPC standards for PCB assembly, featuring 59 patents including invention patents for burr-free depaneling. Trusted by automotive, semiconductor, and new energy clients worldwide.
What about language barriers and time zones?
- 24/7 WhatsApp/WeChat access to our engineers
- Professionally translated English manuals
- Video tutorials for setup and maintenance
- 2-hour response time guaranteed during business hours
What if I need technical support later?
- Free spare parts (e.g., blades, seals) with your order
- Plug-and-play replacement spindle units
- 24/7 remote diagnostics and lifetime video/email support
Professional PCB Depaneling – Protecting Your High-Value Electronics
Request Quote & Full Catalog for PCBA Depaneling Machines / Integrated Systems

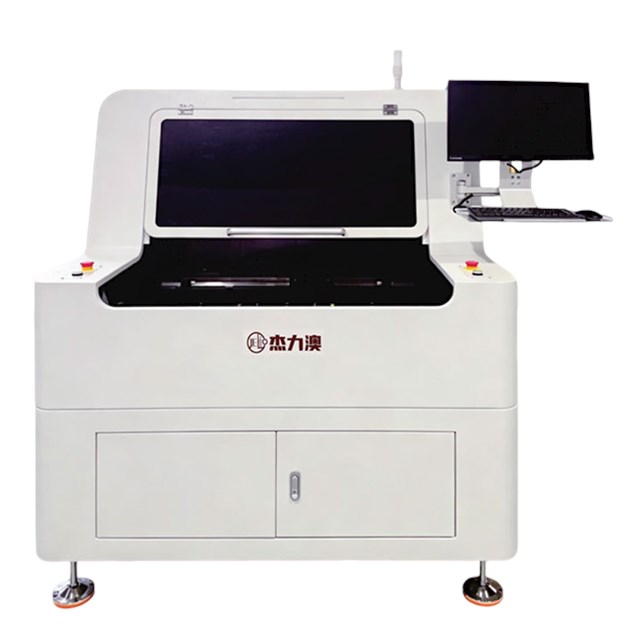

TECHNICAL SPECIFICATIONS
| Model | JLO-CL3030 |
| Max. Depaneling Size | 300mm (X) * 300mm (Y) |
| Cuttable PCB Thickness | <1.5mm |
| X/Y Axis Movement Resolution | 0.1μm |
| Galvanometer Resolution | 16 bit |
| Repeat Positioning Accuracy | ≤ ±1μm |
| Cutting Accuracy | ±20μm |
| Max. Laser Output Power | 20W |
| Supported Data Formats | Gerber, DXF |
| Laser Wavelength | 355nm, Diode-Pumped Solid-State Laser (DPSS Laser) |
| Laser Pulse Frequency | 70kHz to 150kHz |
| Laser Source | 20W / 30W / 60W Optional |
| Integrated Operation Software | Smart Laser |
| Laser Power Monitoring System | Low-Level Monitoring |
| Positioning Method | Automatic Camera Alignment |
| Cooling Method | Chiller Cooling (Refrigeration) |
| Flexible PCB Adsorption Method | Vacuum Adsorption (Optional) |
| Main Unit Power Supply Specs | 220V, 50Hz, 3.5kW |
| Chiller & Dust Collector Power Rating | 2.3kW+2KW |
| Dust Extraction Method | Bottom-Following Suction (Standard) |
| MES Integration | MES Captured CSV Text Format (Standard), Barcode Scanner (Optional) |
| Machine Dimensions (W*H*D) | 1375x1325x1600mm |
| Machine Weight | 1200kg |
EQUIPMENT PERFORMANCE

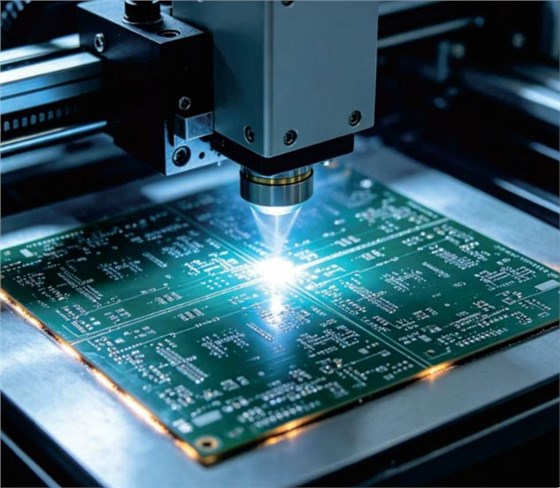

Stress-free Depaneling
Adopting non-contact laser vaporization cutting without mechanical stress, it will not cause physical damage to fragile components such as flexible printed circuits (FPC) and 0201 packaged micro-components, greatly improving product yield.

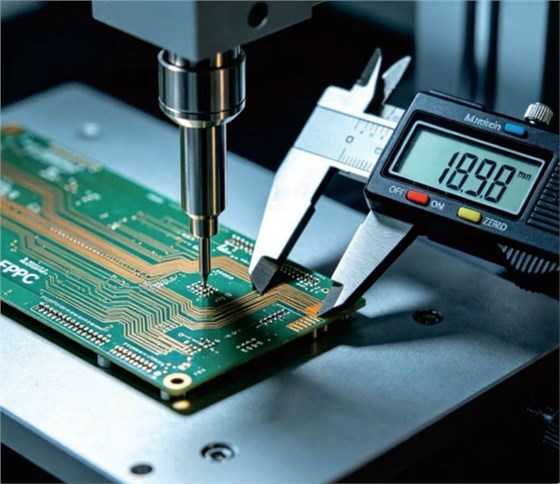

Excellent Cutting Quality
The heat-affected zone is only about 0.1mm. The cutting edge is smooth without burrs and delamination. Workpieces can directly proceed to the next welding process without extra grinding, effectively saving process costs.

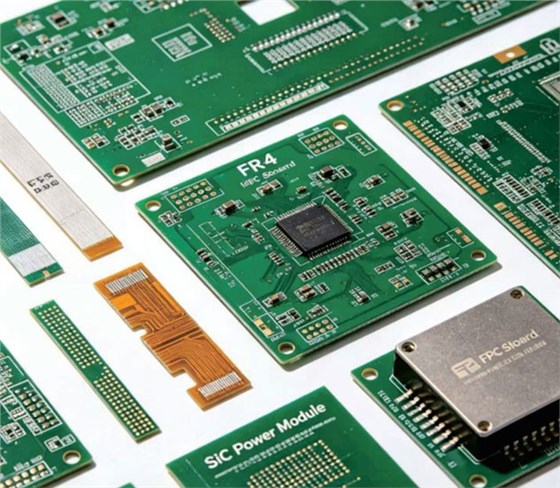

Wide Compatibility Range
It is capable of cutting various materials including FR4 rigid boards, FPC flexible boards, rigid-flex boards, SiC power modules and ultra-thin substrates, meeting depaneling demands in consumer electronics, new energy vehicles, medical electronics, aerospace and other fields.
Flexible Adaptation for Complex Shapes
No physical cutters or molds replacement is required. It can cut any complex contours simply via software programming. Ideal for processing special-shaped boards and high-density boards. It supports rapid model switching for multi-variety and small-batch production, effectively shortening the production cycle.
Certificates & Quality Documents
Company credentials from original documents.
Click to enlarge
Click to enlargeISO 9001 certified · Manufacturing & quality control
Company qualifications and R&D records are shown here. Request inspection results for the specific machine and configuration.
