Router depaneling machine

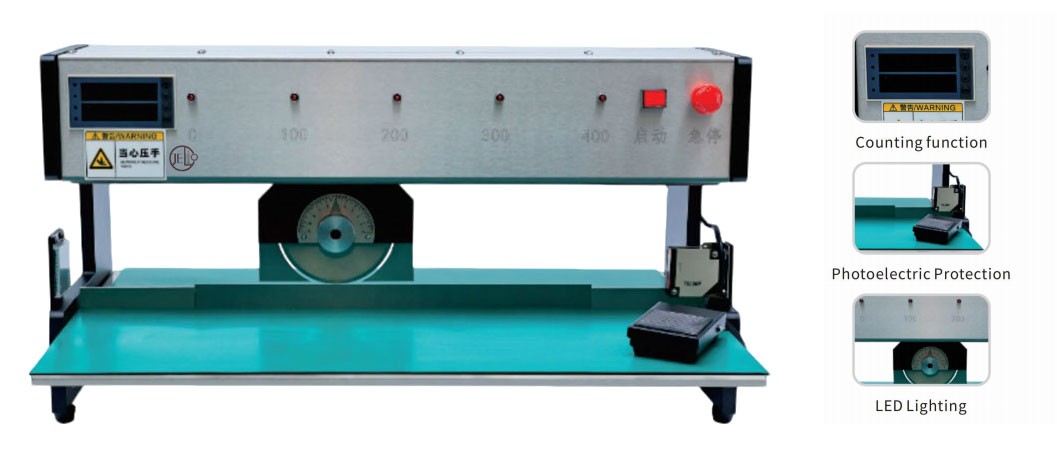

JLO-C400/C600 roller PCB depaneling machine cuts V-groove PCBs under 3mm with low stress. It adopts regrindable SKD11 blades, HIWIN guides and photoelectric safety, with adjustable speed and counting function. Optional belt-feed version available.
Why Global Manufacturers Choose JELIO PCBA Depaneling Machines
Your Premier Partner for High-Precision PCB Separation Solutions
ISO 9001 Certified | 59 Patents | Direct Factory Pricing
Maximize Your Profit Margins
Cut out middlemen. Direct manufacturer pricing from our 1,600 sqm in-house factory gives you a significant cost advantage over local brands.
High-Precision Performance
Stable ±0.01mm repeatability with 1.3MP CCD vision positioning. ISO 9001 certified. Serving clients in automotive, semiconductor, and new energy industries.
Flexible OEM/ODM Customization
Custom configurations, inline integration, tray loaders, and specialized fixturing for unique PCB layouts.
Durable & Easy Maintenance
Modular design, user-replaceable spindle units, and 24/7 remote diagnostics. Built on 15+ years of expertise since 2010.
Sourcing PCBA Depaneling Machines from China Made as Easy as Buying Local
With 15+ years of export mastery, we've bridged the gap. Whether you're a first-time importer or a pro, we handle every detail to ensure a risk-free, "doorstep" experience.
How fast can you deliver?
Standard: 3-7 days | Rush: Priority within 48h | Ready stock for popular models.
Are your products compliant for my market?
Fully certified: ISO 9001, CE. All documentation provided for easy customs clearance. Optional DDP delivery available.
What if products are damaged during shipping?
Triple protection: Industrial packaging + optional wooden cases + full insurance. Immediate replacement upon confirmation.
Is payment secure?
- Alibaba Trade Assurance (payment released after you confirm delivery)
- LC (Letter of Credit) for large orders
- PayPal for samples and small orders
Do your machines meet industry standards?
Absolutely. Our machines strictly adhere to IPC standards for PCB assembly, featuring 59 patents including invention patents for burr-free depaneling. Trusted by automotive, semiconductor, and new energy clients worldwide.
What about language barriers and time zones?
- 24/7 WhatsApp/WeChat access to our engineers
- Professionally translated English manuals
- Video tutorials for setup and maintenance
- 2-hour response time guaranteed during business hours
What if I need technical support later?
- Free spare parts (e.g., blades, seals) with your order
- Plug-and-play replacement spindle units
- 24/7 remote diagnostics and lifetime video/email support
Professional PCB Depaneling – Protecting Your High-Value Electronics
Request Quote & Full Catalog for PCBA Depaneling Machines / Integrated Systems
TECHNICAL SPECIFICATIONS
| Model | JLO-C400 JLO-C600 |
| Working Voltage | AC220V 50Hz 90W |
| Overall Dimensions | 692MM(L)*422MM(W)*373MM(H)/892MM(L)*422MM(W)*373MM(H) |
| Board Depaneling Requirements | V-groove≥0.2MM, distance between components and groove>1.5MM |
| Cutter Travel | 100MM 200MM 300MM 400MM/300MM 400MM 500MM 600MM |
| Board Cutting Height | Maximum component height on PCBA: less than35mm, Component height on the bottom side: less than22mm |
| Blade Material | Imported SKD11 |
| Blade Brand | JZ |
| Blade Re-grindable | Re-grindable |
| Blade Service Life | 6-18 months (depending on PCBA material and burr requirements) |
| Depaneling Speed | 1-5 levels adjustable |
| Counting Function | Counting function available |
| Working Mode | Jog mode & hold mode |
| Safety Protection | Photoelectric protection |
| Lighting | Built-in LED lighting |
| Application Scope | Fiberglass board, FR-4, FR-2and other materials with thickness less than3MM |
| Operation Method | PCBA clamped on the lower blade; press foot pedal, upper circular blade rolls for depaneling |
| Moving Parts | Taiwan HIWIN linear guide |
| Bearing | Harbin Bearing |
| Motor | 5757 stepping motor |
| Main Structural Parts | 5052 aluminum alloy |
| Weight | 30KG/50KG |
| Wearing Parts & Consumables | Upper circular blade (JZ-120), lower straight blade (JZ-415) / lower straight blade (JZ-615) |
| Finished PCBA After Depaneling | Manual pickup |
| Upgraded Version | Belt-feed PCB depaneling machine |
