PCB Router Depaneling Machine
JLO-C4980 dual-station PCB router features ±0.02mm repeat precision and ±0.06mm cutting accuracy. Equipped with 1.3MP CCD multi-mark auto compensation and 40000rpm spindle, it delivers low-stress, burr-free cutting for 0.5–4mm PCBA. It supports inter-workstation program copy, bottom full dust collection, auto fault diagnosis and cutter life management for stable small-batch precision production.
Why Global Manufacturers Choose JELIO PCBA Depaneling Machines
Your Premier Partner for High-Precision PCB Separation Solutions
ISO 9001 Certified | 59 Patents | Direct Factory Pricing
Maximize Your Profit Margins
Cut out middlemen. Direct manufacturer pricing from our 1,600 sqm in-house factory gives you a significant cost advantage over local brands.
High-Precision Performance
Stable ±0.01mm repeatability with 1.3MP CCD vision positioning. ISO 9001 certified. Serving clients in automotive, semiconductor, and new energy industries.
Flexible OEM/ODM Customization
Custom configurations, inline integration, tray loaders, and specialized fixturing for unique PCB layouts.
Durable & Easy Maintenance
Modular design, user-replaceable spindle units, and 24/7 remote diagnostics. Built on 15+ years of expertise since 2010.
Sourcing PCBA Depaneling Machines from China Made as Easy as Buying Local
With 15+ years of export mastery, we've bridged the gap. Whether you're a first-time importer or a pro, we handle every detail to ensure a risk-free, "doorstep" experience.
How fast can you deliver?
Standard: 3-7 days | Rush: Priority within 48h | Ready stock for popular models.
Are your products compliant for my market?
Fully certified: ISO 9001, CE. All documentation provided for easy customs clearance. Optional DDP delivery available.
What if products are damaged during shipping?
Triple protection: Industrial packaging + optional wooden cases + full insurance. Immediate replacement upon confirmation.
Is payment secure?
- Alibaba Trade Assurance (payment released after you confirm delivery)
- LC (Letter of Credit) for large orders
- PayPal for samples and small orders
Do your machines meet industry standards?
Absolutely. Our machines strictly adhere to IPC standards for PCB assembly, featuring 59 patents including invention patents for burr-free depaneling. Trusted by automotive, semiconductor, and new energy clients worldwide.
What about language barriers and time zones?
- 24/7 WhatsApp/WeChat access to our engineers
- Professionally translated English manuals
- Video tutorials for setup and maintenance
- 2-hour response time guaranteed during business hours
What if I need technical support later?
- Free spare parts (e.g., blades, seals) with your order
- Plug-and-play replacement spindle units
- 24/7 remote diagnostics and lifetime video/email support
Professional PCB Depaneling – Protecting Your High-Value Electronics
Request Quote & Full Catalog for PCBA Depaneling Machines / Integrated Systems
TECHNICAL SPECIFICATIONS
| Model | JLO-C4980 |
| Number of Workstations | Dual Station |
| Max. PCB Depaneling Size | 350mm(X)*320mm(Y) (Single Station) |
| Machine Travel | 900mm(X)*600mm(Y)*100mm(Z) |
| PCBA Component Height | Upper:15mm Lower:45mm |
| Repeatability | ±0.02mm |
| Cutting Accuracy | ±0.06mm |
| Repeat Cutting Accuracy | ±0.02mm |
| Cuttable PCBA Thickness | 0.5~4mm |
| Spindle Tool Range | φ0.5~3mm |
| Spindle Speed | MAX.40000rpm |
| Spindle Power | 150W |
| Mark Compensation | Camera recognition & positioning, automatic compensation |
| Cutting Speed | 0~100mm/sec |
| Moving Speed | XY:1000mm/s, Z:500mm/s |
| Cutting Function | Straight line, L-shape, U-shape, circle, arc, etc |
| Transfer Method | Servo drive |
| Camera Pixel | 1.3MP |
| Milling Cutter Replacement Method | Manual tool change |
| Main Unit Power Specification | AC220V 50HZ 2.5KW |
| Dust Collector Power Specification | AC380V 50HZ 2.2KW |
| Dust Collection Method | Bottom full dust collection |
| MES Connection | Not supported |
| Machine Dimensions | 1280mm(L)*1080mm(W)*1580mm(H) |
| Machine Weight | 430KG |
EQUIPMENT PERFORMANCE
This machine mainly uses a high-speed rotating milling cutter to separate multi-panel PCBA according to pre-programmed paths, which effectively reduces the stress generated during depaneling and ensures smooth, burr-free cut surfaces.

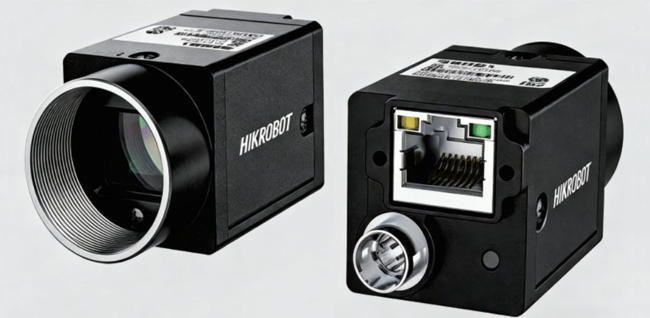

Multi-Mark Recognition System
High-pixel color CCD camera for Mark recognition and positioning, enabling real-time monitoring and correction of the cutting path. Marks can be positioned up to 4 times, reducing the probability of downtime due to failed Mark detection. Programs on the left and right tables can be copied to each other.

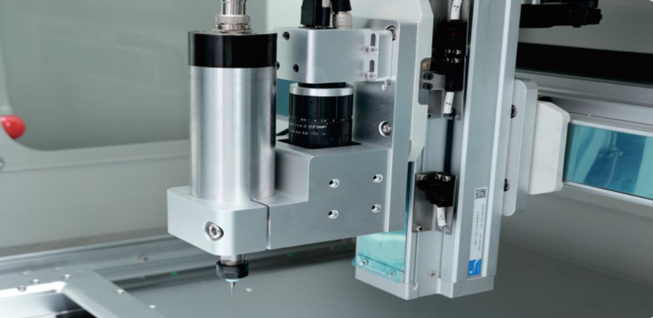

Depaneling Spindle
High-power, high-speed spindle ensures smooth, burr-free cutting surfaces on PCBA and is capable of cutting fiberglass boards. (Aluminum substrates can be cut by replacing the dedicated spindle.)

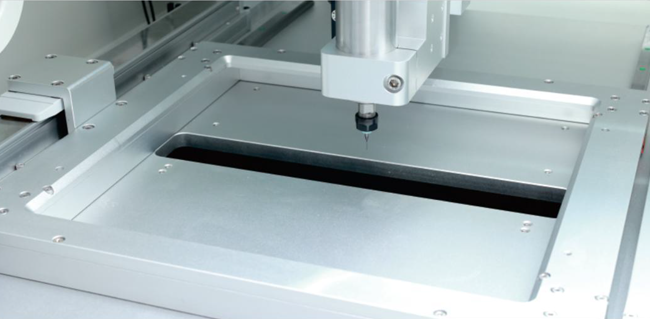

Blade-type Dust Removal
The dust removal port adopts a blade-type structure, which provides higher air speed and stronger suction in the dust box under the same power.

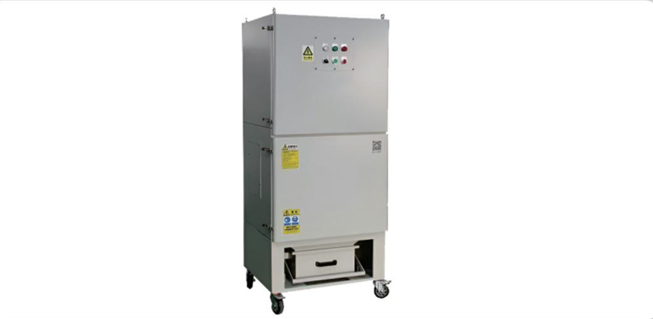

Dust Collection Box
3HP cloth-bag dust collection box, capable of collecting large particles and absorbing surface dust to avoid secondary cleaning.

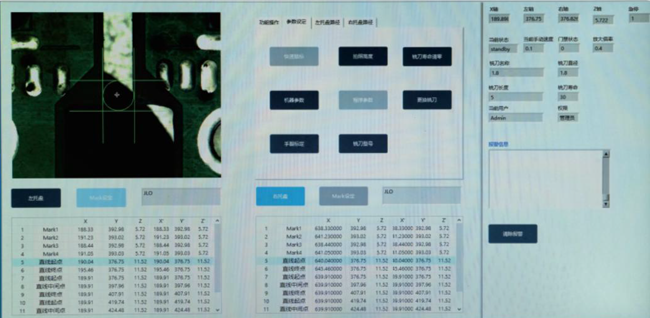

Automatic Fault Diagnosis Function
The system can self-diagnose faults during equipment operation and display the fault sources on the control panel for easy troubleshooting and timely production resumption.

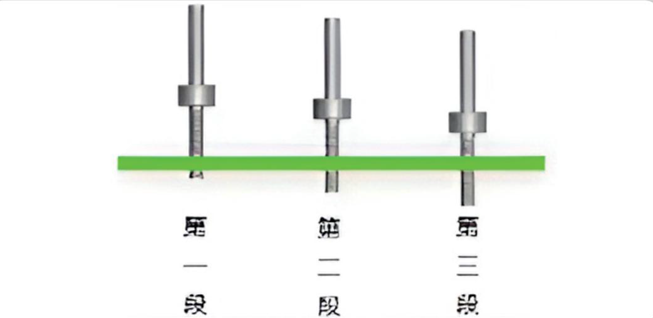

Tool Usage Management
The total cutting life of the milling cutter can be set according to its cutting edge length (tooth length) and the PCBA thickness. The system automatically generates optimal segmented cyclic cutting to maximize the service value of the milling cutter and can record its actual service life.
