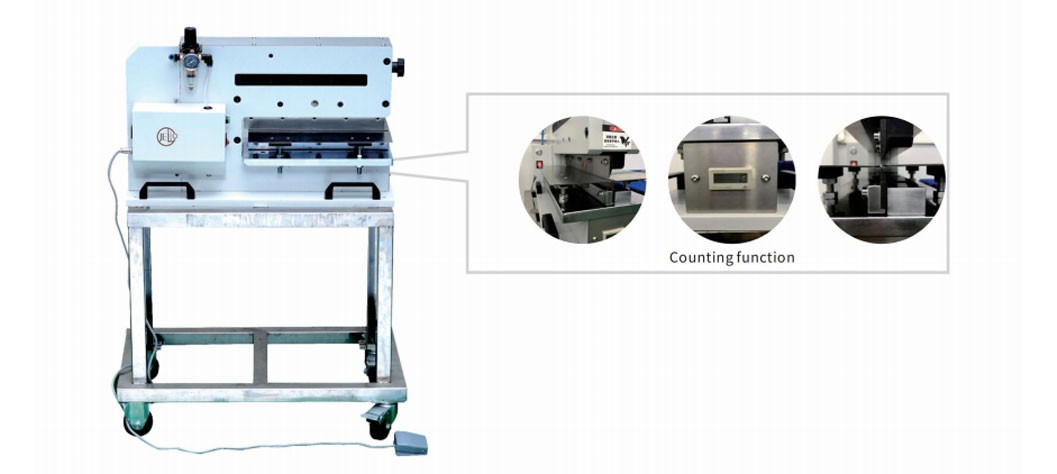

Guillotine depaneling machine

KEY FEATURES

• Dual straight blades cutting, especially suitable for precision fiberglass boards, aluminum substrates and copper substrates.
• Guillotine-type operation, applicable for PCBA boards with thickness within 1.0-3.0 mm and cutting stroke below 1-3 mm, ensuring absolute operational safety.
• The internal stress generated during cutting is minimized to avoid solder cracking and damage to precision components.
• The distance between the V-cut edge and components shall be ≥ 3 mm.
• Cutting rate: 1 cut per second, controlled by foot pedal pneumatic switch.
• Equipped with counting function for intuitive production capacity display.
• The cutter set is passively activated, allowing safe control of the cutting line and position; low cutting stress, not prone to cracks.
• Non-roller (non-cutter wheel, non-moving blade) cutting, no dust, no motor drive, no carbon powder pollution.
• Non-friction cutting, no metal residue from tools.
• The service life of the blades is up to 600,000 cycles under normal use.
• Operating air pressure: 0.4-0.6 MPa, no special cutting site required.
• The appearance can be maintained by wiping with anti-rust oil.
• Equipped with a movable workbench for easy movement and operation.
