Professional PCB Depaneling – Protecting Your High-Value Electronics
Request Quote & Full Catalog for PCBA Depaneling Machines / Integrated Systems
TECHNICAL SPECIFICATIONS
| Model | JLO-C4980 |
| Number of Workstations | Dual Station |
| Max. PCB Depaneling Size | 350mm(X)*320mm(Y) (Single Station) |
| Machine Travel | 900mm(X)*600mm(Y)*100mm(Z) |
| PCBA Component Height | Upper:15mm Lower:45mm |
| Repeatability | ±0.02mm |
| Cutting Accuracy | ±0.06mm |
| Repeat Cutting Accuracy | ±0.02mm |
| Cuttable PCBA Thickness | 0.5~4mm |
| Spindle Tool Range | φ0.5~3mm |
| Spindle Speed | MAX.40000rpm |
| Spindle Power | 150W |
| Mark Compensation | Camera recognition & positioning, automatic compensation |
| Cutting Speed | 0~100mm/sec |
| Moving Speed | XY:1000mm/s, Z:500mm/s |
| Cutting Function | Straight line, L-shape, U-shape, circle, arc, etc |
| Transfer Method | Servo drive |
| Camera Pixel | 1.3MP |
| Milling Cutter Replacement Method | Manual tool change |
| Main Unit Power Specification | AC220V 50HZ 2.5KW |
| Dust Collector Power Specification | AC380V 50HZ 2.2KW |
| Dust Collection Method | Bottom full dust collection |
| MES Connection | Not supported |
| Machine Dimensions | 1280mm(L)*1080mm(W)*1580mm(H) |
| Machine Weight | 430KG |
EQUIPMENT PERFORMANCE
This machine mainly uses a high-speed rotating milling cutter to separate multi-panel PCBA according to pre-programmed paths, which effectively reduces the stress generated during depaneling and ensures smooth, burr-free cut surfaces.

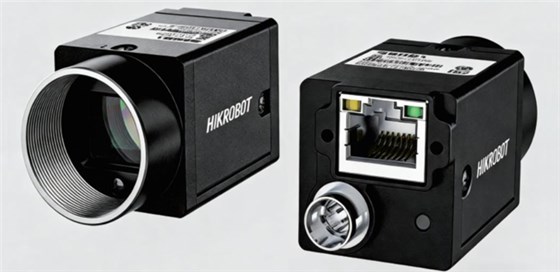

Multi-Mark Recognition System
High-pixel color CCD camera for Mark recognition and positioning, enabling real-time monitoring and correction of the cutting path. Marks can be positioned up to 4 times, reducing the probability of downtime due to failed Mark detection. Programs on the left and right tables can be copied to each other.

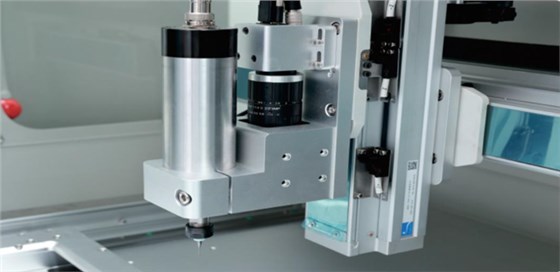

Depaneling Spindle
High-power, high-speed spindle ensures smooth, burr-free cutting surfaces on PCBA and is capable of cutting fiberglass boards. (Aluminum substrates can be cut by replacing the dedicated spindle.)

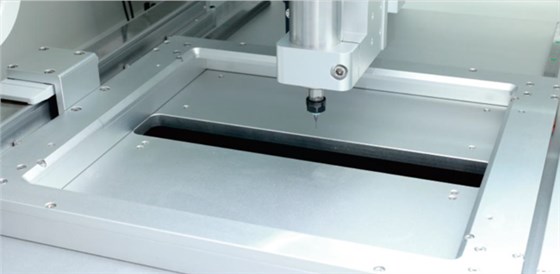

Blade-type Dust Removal
The dust removal port adopts a blade-type structure, which provides higher air speed and stronger suction in the dust box under the same power.

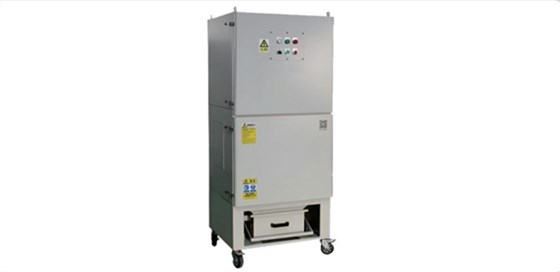

Dust Collection Box
3HP cloth-bag dust collection box, capable of collecting large particles and absorbing surface dust to avoid secondary cleaning.

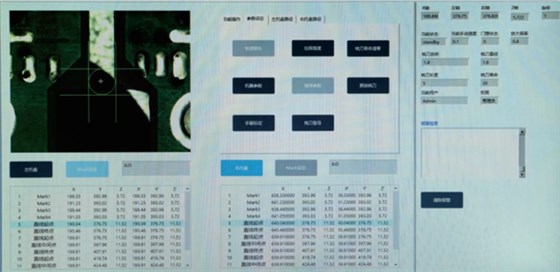

Automatic Fault Diagnosis Function
The system can self-diagnose faults during equipment operation and display the fault sources on the control panel for easy troubleshooting and timely production resumption.

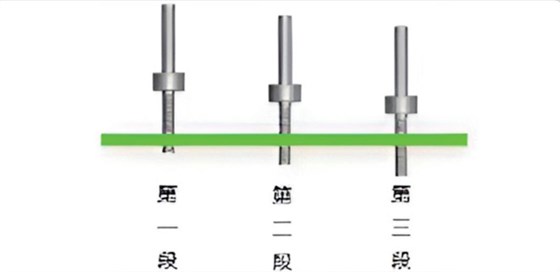

Tool Usage Management
The total cutting life of the milling cutter can be set according to its cutting edge length (tooth length) and the PCBA thickness. The system automatically generates optimal segmented cyclic cutting to maximize the service value of the milling cutter and can record its actual service life.
