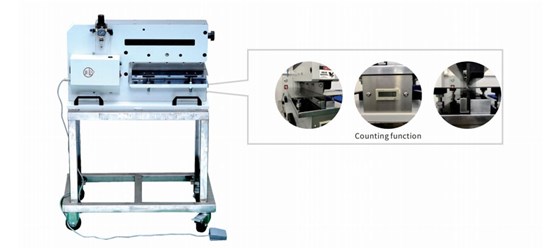

Click to enlargeWhy Global Manufacturers Choose JELIO PCBA Depaneling Machines
Your Premier Partner for High-Precision PCB Separation Solutions
ISO 9001 Certified | 59 Patents | Direct Factory Pricing
Maximize Your Profit Margins
Cut out middlemen. Direct manufacturer pricing from our 1,600 sqm in-house factory gives you a significant cost advantage over local brands.
High-Precision Performance
Stable ±0.01mm repeatability with 1.3MP CCD vision positioning. ISO 9001 certified. Serving clients in automotive, semiconductor, and new energy industries.
Flexible OEM/ODM Customization
Custom configurations, inline integration, tray loaders, and specialized fixturing for unique PCB layouts.
Durable & Easy Maintenance
Modular design, user-replaceable spindle units, and 24/7 remote diagnostics. Built on 15+ years of expertise since 2010.
Sourcing PCBA Depaneling Machines from China Made as Easy as Buying Local
With 15+ years of export mastery, we've bridged the gap. Whether you're a first-time importer or a pro, we handle every detail to ensure a risk-free, "doorstep" experience.
How fast can you deliver?
Standard: 3-7 days | Rush: Priority within 48h | Ready stock for popular models.
Are your products compliant for my market?
Fully certified: ISO 9001, CE. All documentation provided for easy customs clearance. Optional DDP delivery available.
What if products are damaged during shipping?
Triple protection: Industrial packaging + optional wooden cases + full insurance. Immediate replacement upon confirmation.
Is payment secure?
- Alibaba Trade Assurance (payment released after you confirm delivery)
- LC (Letter of Credit) for large orders
- PayPal for samples and small orders
Do your machines meet industry standards?
Absolutely. Our machines strictly adhere to IPC standards for PCB assembly, featuring 59 patents including invention patents for burr-free depaneling. Trusted by automotive, semiconductor, and new energy clients worldwide.
What about language barriers and time zones?
- 24/7 WhatsApp/WeChat access to our engineers
- Professionally translated English manuals
- Video tutorials for setup and maintenance
- 2-hour response time guaranteed during business hours
What if I need technical support later?
- Free spare parts (e.g., blades, seals) with your order
- Plug-and-play replacement spindle units
- 24/7 remote diagnostics and lifetime video/email support
Professional PCB Depaneling – Protecting Your High-Value Electronics
Request Quote & Full Catalog for PCBA Depaneling Machines / Integrated Systems
TECHNICAL SPECIFICATIONS
| Model | JLO-C320 |
| Machine Dimensions | 680x250x450MM |
| Machine Weight | 138KG |
| Movable Workbench Dimensions | 720x420x750MM |
| Working Voltage | 220V |
| Working Air Pressure | 0.4-0.6Mpa |
| Depaneling Length | 0-300MM |
| Depaneling Width | 0-Unlimited |
| Depaneling Thickness | 1.0-3.0MM |
| Depaneling Speed | 1 cut per second |
| Component Height Limit | Component height ≤ 40 mm for upward depaneling; ≤ 15 mm for downward depaneling |
| Distance from Component to V-cut Groove | ≥3MM (customizable) |

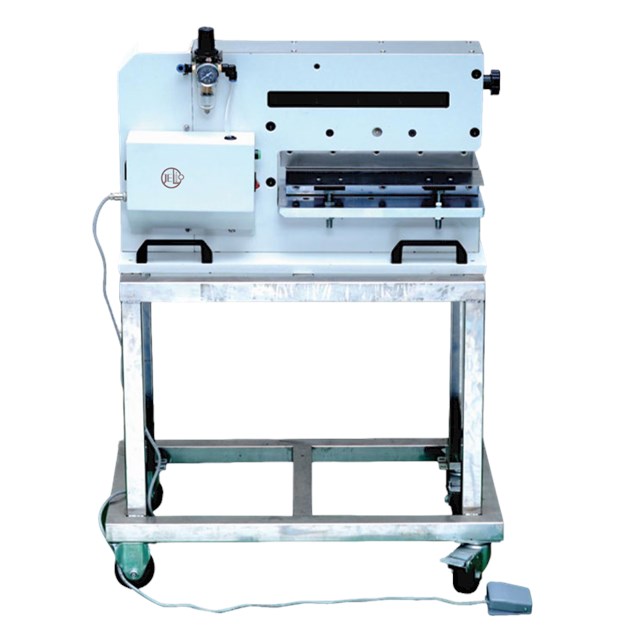

KEY FEATURES
- Dual straight blades cutting, especially suitable for precision fiberglass boards, aluminum substrates and copper substrates.
- Guillotine-type operation, applicable for PCBA boards with thickness within 1.0-3.0 mm and cutting stroke below 1-3 mm, ensuring absolute operational safety.
- The internal stress generated during cutting is minimized to avoid solder cracking and damage to precision components.
- The distance between the V-cut edge and components shall be ≥ 3 mm.
- Cutting rate: 1 cut per second, controlled by foot pedal pneumatic switch.
- Equipped with counting function for intuitive production capacity display.
- The cutter set is passively activated, allowing safe control of the cutting line and position; low cutting stress, not prone to cracks.
- Non-roller (non-cutter wheel, non-moving blade) cutting, no dust, no motor drive, no carbon powder pollution.
- Non-friction cutting, no metal residue from tools.
- The service life of the blades is up to 600,000 cycles under normal use.
- Operating air pressure: 0.4-0.6 MPa, no special cutting site required.
- The appearance can be maintained by wiping with anti-rust oil.
- Equipped with a movable workbench for easy movement and operation.
