Click to enlargeWhy Global Manufacturers Choose JELIO PCBA Depaneling Machines
Your Premier Partner for High-Precision PCB Separation Solutions
ISO 9001 Certified | 59 Patents | Direct Factory Pricing
Maximize Your Profit Margins
Cut out middlemen. Direct manufacturer pricing from our 1,600 sqm in-house factory gives you a significant cost advantage over local brands.
High-Precision Performance
Stable ±0.01mm repeatability with 1.3MP CCD vision positioning. ISO 9001 certified. Serving clients in automotive, semiconductor, and new energy industries.
Flexible OEM/ODM Customization
Custom configurations, inline integration, tray loaders, and specialized fixturing for unique PCB layouts.
Durable & Easy Maintenance
Modular design, user-replaceable spindle units, and 24/7 remote diagnostics. Built on 15+ years of expertise since 2010.
Sourcing PCBA Depaneling Machines from China Made as Easy as Buying Local
With 15+ years of export mastery, we've bridged the gap. Whether you're a first-time importer or a pro, we handle every detail to ensure a risk-free, "doorstep" experience.
How fast can you deliver?
Standard: 3-7 days | Rush: Priority within 48h | Ready stock for popular models.
Are your products compliant for my market?
Fully certified: ISO 9001, CE. All documentation provided for easy customs clearance. Optional DDP delivery available.
What if products are damaged during shipping?
Triple protection: Industrial packaging + optional wooden cases + full insurance. Immediate replacement upon confirmation.
Is payment secure?
- Alibaba Trade Assurance (payment released after you confirm delivery)
- LC (Letter of Credit) for large orders
- PayPal for samples and small orders
Do your machines meet industry standards?
Absolutely. Our machines strictly adhere to IPC standards for PCB assembly, featuring 59 patents including invention patents for burr-free depaneling. Trusted by automotive, semiconductor, and new energy clients worldwide.
What about language barriers and time zones?
- 24/7 WhatsApp/WeChat access to our engineers
- Professionally translated English manuals
- Video tutorials for setup and maintenance
- 2-hour response time guaranteed during business hours
What if I need technical support later?
- Free spare parts (e.g., blades, seals) with your order
- Plug-and-play replacement spindle units
- 24/7 remote diagnostics and lifetime video/email support
Professional PCB Depaneling – Protecting Your High-Value Electronics
Request Quote & Full Catalog for PCBA Depaneling Machines / Integrated Systems

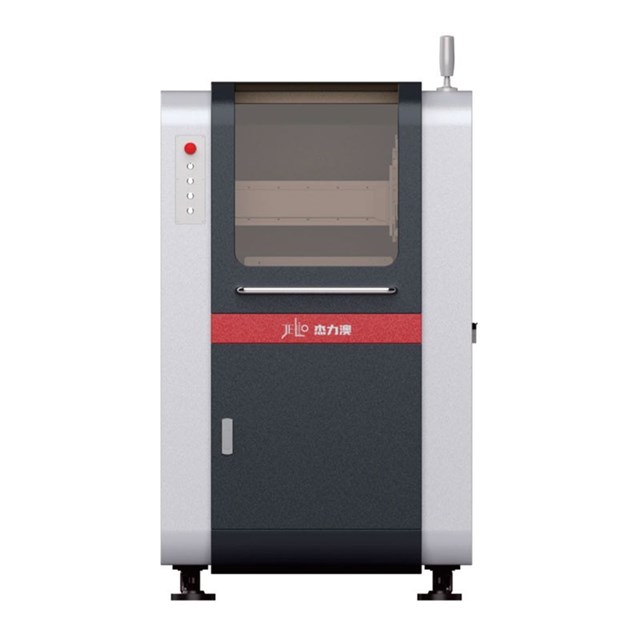

TECHNICAL SPECIFICATIONS
| Model | JLO-5045Z |
| Working Range | X500mm*Y450mm*Z100mm |
| Max. Speed (X/Y Axis) | 1000 mm/sec |
| Max. Speed (Z Axis) | 500 mm/sec |
| Repeatability | ±0.02MM |
| Transmission Mode | Servo motor / imported ground ball screw |
| Power Supply | AV220V 50-60Hz 2.5KW |
| Machine Dimensions | 1050MM(L)*1480MM(W)*1970MM(H) |
| Weight | Approx. 900KG |
| Positioning Accuracy | ±0.02MM |
| Product Changeover Time | 10-20minutes |
| Administrator Password | Available, can automatically exit the password page |
| Programming Mode | Computer programming |
| MES | Port open for customer data collection |
| Barcode Scanning | Automatic barcode scanner (optional) |
| Number of Motion Axes | 3-axis, 4-axis, 5-axis |
| Track Direction | Left to right, right to left, configurable |
| Glue Dispensing Method | Pneumatic glue dispensing (optional screw valve, piezoelectric valve) |
TRACK SPECIFICATIONS
| Number of Tracks | One |
| Track Segmentation | Single Segment (Standard) |
| Track Width | 50-450MM |
| Track Height | 900±30MM |
| Conveying Type | Chain |
| Conveying Speed | MAX300mm/s |
| Max. Board Thickness | 0.5~20MM |
| Conveying Weight | MAX10KG (Customizable) |
| Track Adjustment Type | Electrically Adjustable |
| Number of Motors | 4 Sets |
| Upper/Lower Clearance of Track | 80MM/30MM |
Dispensing Valve
- Backflow Valve
- Needle Valve
- Piezoelectric Valve
- Pneumatic Valve
- Screw Valve
- ......
Applications
- Red glue dispensing
- Pin encapsulation
- Underfill
- Dam and fill
- COB packaging
- Precision coating
- ......
Compatible Adhesives
UV glue, AB glue, PUR, EPOXY (black glue), white glue, EMI conductive glue, SILICON, epoxy resin, cyanoacrylate adhesive, silver paste, red glue, solder paste, thermal paste, solder mask, clear lacquer, screw locking adhesive, etc.
CCD Vision System
Automatically identifies and locates product Mark points (1.3-megapixel, single Mark point recognition time: 200ms).
The vision system analyzes errors in the dispensing path. An alarm is triggered automatically if the error exceeds a specified range. Within the allowable error range, the system corrects the dispensing path to meet the product's qualified error tolerance.
Certificates & Quality Documents
Company credentials from original documents.
Click to enlarge
Click to enlargeISO 9001 certified · Manufacturing & quality control
Company qualifications and R&D records are shown here. Request inspection results for the specific machine and configuration.
