Click to enlargeWhy Global Manufacturers Choose JELIO PCBA Depaneling Machines
Your Premier Partner for High-Precision PCB Separation Solutions
ISO 9001 Certified | 59 Patents | Direct Factory Pricing
Maximize Your Profit Margins
Cut out middlemen. Direct manufacturer pricing from our 1,600 sqm in-house factory gives you a significant cost advantage over local brands.
High-Precision Performance
Stable ±0.01mm repeatability with 1.3MP CCD vision positioning. ISO 9001 certified. Serving clients in automotive, semiconductor, and new energy industries.
Flexible OEM/ODM Customization
Custom configurations, inline integration, tray loaders, and specialized fixturing for unique PCB layouts.
Durable & Easy Maintenance
Modular design, user-replaceable spindle units, and 24/7 remote diagnostics. Built on 15+ years of expertise since 2010.
Sourcing PCBA Depaneling Machines from China Made as Easy as Buying Local
With 15+ years of export mastery, we've bridged the gap. Whether you're a first-time importer or a pro, we handle every detail to ensure a risk-free, "doorstep" experience.
How fast can you deliver?
Standard: 3-7 days | Rush: Priority within 48h | Ready stock for popular models.
Are your products compliant for my market?
Fully certified: ISO 9001, CE. All documentation provided for easy customs clearance. Optional DDP delivery available.
What if products are damaged during shipping?
Triple protection: Industrial packaging + optional wooden cases + full insurance. Immediate replacement upon confirmation.
Is payment secure?
- Alibaba Trade Assurance (payment released after you confirm delivery)
- LC (Letter of Credit) for large orders
- PayPal for samples and small orders
Do your machines meet industry standards?
Absolutely. Our machines strictly adhere to IPC standards for PCB assembly, featuring 59 patents including invention patents for burr-free depaneling. Trusted by automotive, semiconductor, and new energy clients worldwide.
What about language barriers and time zones?
- 24/7 WhatsApp/WeChat access to our engineers
- Professionally translated English manuals
- Video tutorials for setup and maintenance
- 2-hour response time guaranteed during business hours
What if I need technical support later?
- Free spare parts (e.g., blades, seals) with your order
- Plug-and-play replacement spindle units
- 24/7 remote diagnostics and lifetime video/email support
Professional PCB Depaneling – Protecting Your High-Value Electronics
Request Quote & Full Catalog for PCBA Depaneling Machines / Integrated Systems
TECHNICAL SPECIFICATIONS
| PCB Depaneling Range | 350 * 550mm |

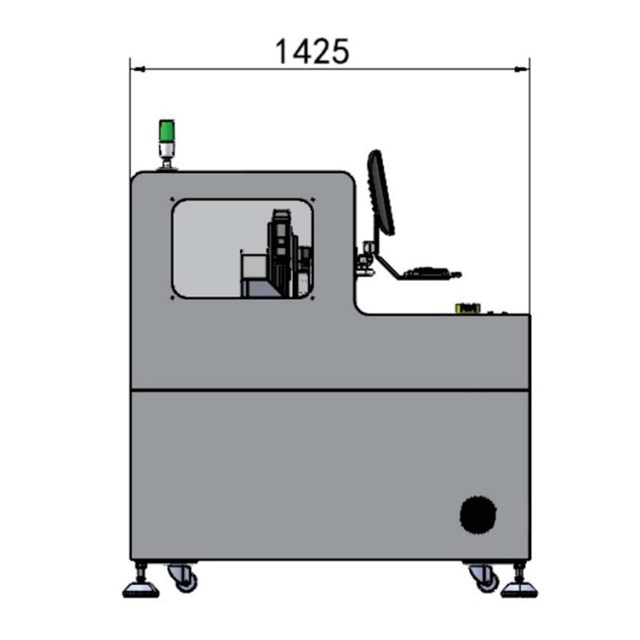

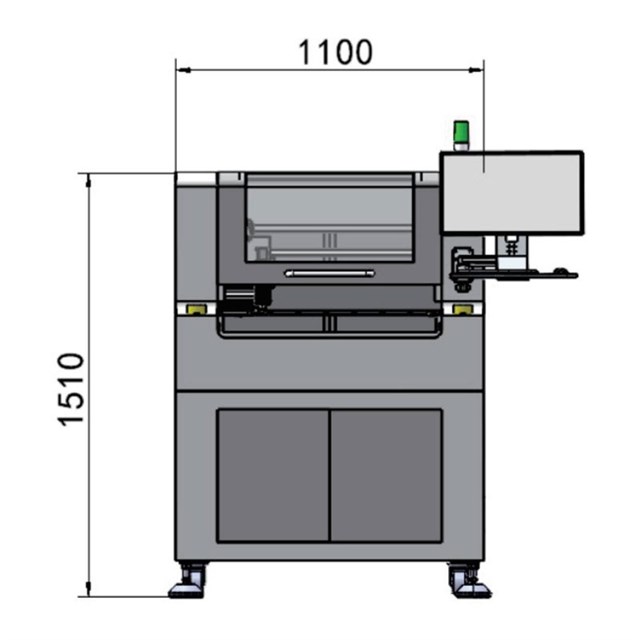

| Equipment Dimensions | 1100mm(W) x 1425mm(D) x 1510mm(H) |
| Cutting Functions | Straight line, Lshape, Ushape, circle, circular arc, etc. |
| Moving Speed | Max. 1000 mm/sec |
| Cutting Speed | 0~100mm/sec |
| Mechanical Repeatability | ±0.01mm |
| Cutting Precision | ±0.05mm |
| Spindle Tool Range | φ0.5~3mm |
| Fixture Type | Special fixture tray type |
| Spindle Speed / Power | Max. 250W / 60000rpm (adjustable) |
| Milling Cutter Replacement Method | Manual (automatic replacement optional) |
| Transfer Mode | All axes driven by AC servo (5axis) |
| Control Mode | PC control / Windows system |
| Vision System | CCD Camera / 1.3 Megapixels |
| Mark Compensation Function | Camera identification & positioning / Automatic compensation |
| MES System | Configurable |
| Main Unit Power Specification | AC220V 50/60Hz, 1.7KW |
| Air Pressure | 0.5-0.6MPa |
| Equipment Weight | <680KG |
| Dust Collector | 3HP or 5HP, AC380V |
PRODUCT HIGHLIGHTS
Extreme Productivity
- Synchronous dual-spindle batch production: Compared to traditional "asynchronous dual-spindle" plate-cutting machines, the efficiency is improved by 20-30%.
- Management cost saving
- Automatic spindle pitch adjustment
Highest Flexibility & Efficiency
-
Automatic spindle pitch adjustment
The "Single&Double Head" mode can be used with high flexibility in limited space
- Mixed production with double working stages
- Cavity-type downward suction dust removal design + Anti-static ionized air device
Conveniences
- CCD photography programming: quick to learn without missing any steps. Programming time: 5-10 minutes
- Automatic Tool Detection
- Powerful dust collection system, easy to handle collected dust
Certificates & Quality Documents
Company credentials and related depaneling R&D records from original documents.
Click to enlarge
Click to enlarge
Click to enlarge
Click to enlarge
Click to enlargeISO 9001 certified · Manufacturing & quality control
Company qualifications and R&D records are shown here. Request inspection results for the specific machine and configuration.
